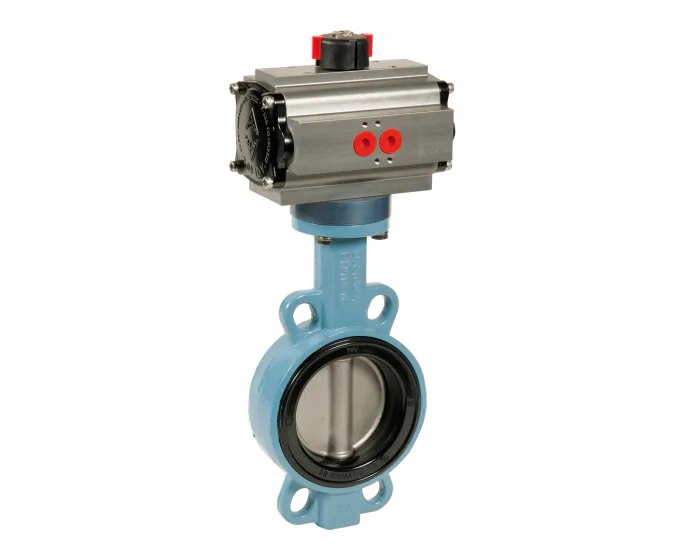

The 1151 series ductile iron butterfly valve, equipped with either a spring return or double acting ACTREG pneumatic actuator, features a CF8M disc, up to DN200. It is a wafer type, PN10/16 and ANSI 150.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 304 |
| Adjustable limit screws | Yes |
| ATEX compatible | Yes |
| DN | 32 - 40 |
| Face to Face (mm) | 33.0 |
| Seat | NBR |
| Body material | Ductile iron |
| ATEX protection mode | Ex c |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| Position | Normally closed |
| PS (bar) | 16 |
| Connections | Flanged PN10/16 |
| Surface temperature | TX |
| Pneumatic actuator type | Double acting |
| Butterfly valve design | Concentric |
| Wafer/lug | Wafer |
| Warranty period | 2 years |
| CE | Risk category I |
| Range | TTV |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/16 Ductile iron Concentric Double acting 32 - 40 | 260440015100 | S1003176 |
€213.01
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric Spring return 32 - 40 | 260440016101 | S1003177 |
€239.70
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN50 - 2'' Double acting | 260441015100 | S1003178 |
€213.01
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN50 - 2'' Spring return | 260441016101 | S1003179 |
€245.79
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN65 - 2''1/2 Double acting | 260442015101 | S1003180 |
€253.59
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN65 - 2''1/2 Spring return | 260442016102 | S1003181 |
€297.74
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN80 - 3'' Double acting | 260443015101 | S1003182 |
€286.19
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN80 - 3'' Spring return | 260443016102 | S1003183 |
€314.44
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN100 - 4'' Double acting | 260444015102 | S1003184 |
€318.61
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN100 - 4'' Spring return | 260444016103 | S1003185 |
€351.31
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN125 - 5'' Double acting | 260445015102 | S1003186 |
€366.83
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN150 - 6'' Double acting | 260446015103 | S1003187 |
€448.89
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN150 - 6'' Spring return | 260446016106 | S1003188 |
€657.90
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN200 - 8'' Double acting | 260447015104 | S1003189 |
€526.16
(excl. btw)
|
add to cart |
